DFL-15-F40

sync derivation Strip Light (Flex Line) Top-Bend

Download

Fixture Specifications

TYPE
Weight
Size W12.5 x D4.5 x L1000
Cuttable length 50 mm
Body Silica gel+FPC
Driver Remote (sold separately)
Required Option DFL-PFC : Power Feed Connector,
DF-EC : End cap, DFL-ILC : In-line Connector
Remarks Values shown are per 1 meter.
Customized length available up to 5m per roll.
IP Rating IP20

Beam Angle 120 x 114°
Color Temperature 4000K
Color Rendering 90≦CRI
Rated Lumen Output 1185 lm

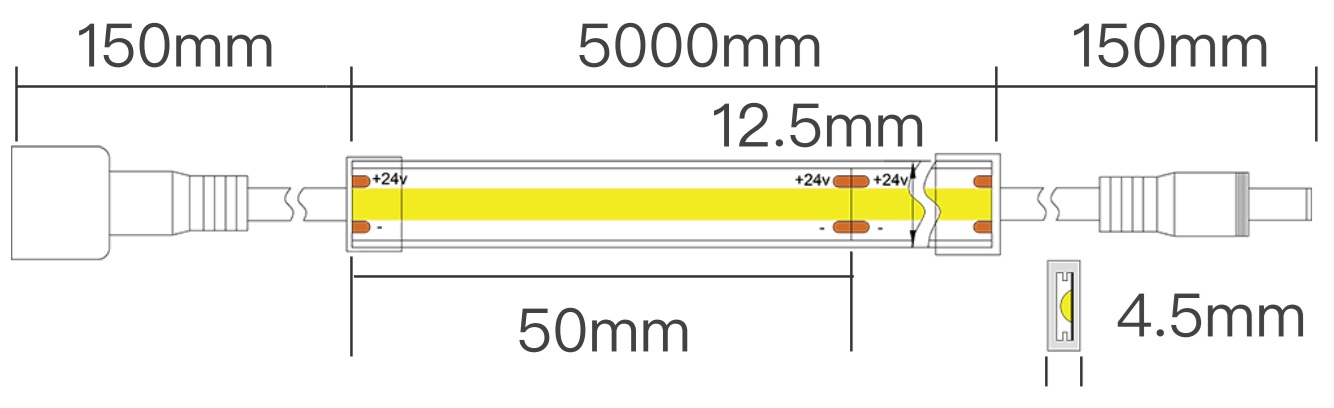

Dimensions

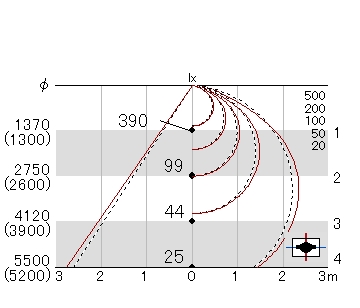

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Phase/0-10V/Dali/Smart LEDZ wire-less dimming
Operating
Voltage		 DC24V
Power
Consumption		 15.0W

Option Accessories


Option1

Power Feed Connector (Flex Line)
  DFL-PFC

End cap
  DF-EC

In-line connector (Flex Line)
  DFL-ILC

Option2

Silicone Holder
  DF-SH

Mounting rail w/acrylic cover
  DF-MRA

Mounting rail 45deg card-slot type
  DF-CST45

Please contact our sales office for ies file with option accessories
