DFT-16-FTW

sync derivation Strip Light (Flex Tune) Top-Bend

Download

Fixture Specifications

TYPE
Weight
Size W12.5 x D4.5 x L1000
Cuttable length 83.3 mm
Body Silica gel+FPC
Driver Remote (sold separately)
Required Option DFT-PFC : Power Feed Connector,
DFT-EC : End cap, DFT-ILC : In-line Connector
Remarks Values shown are per 1 meter.
Photometric data at 4000K(measured values).
Customized length available up to 5m per roll.
IP Rating IP20

Beam Angle 109 x 112°
Color Temperature 6500K-1800K
Color Rendering 90≦CRI
Rated Lumen Output 1005 lm

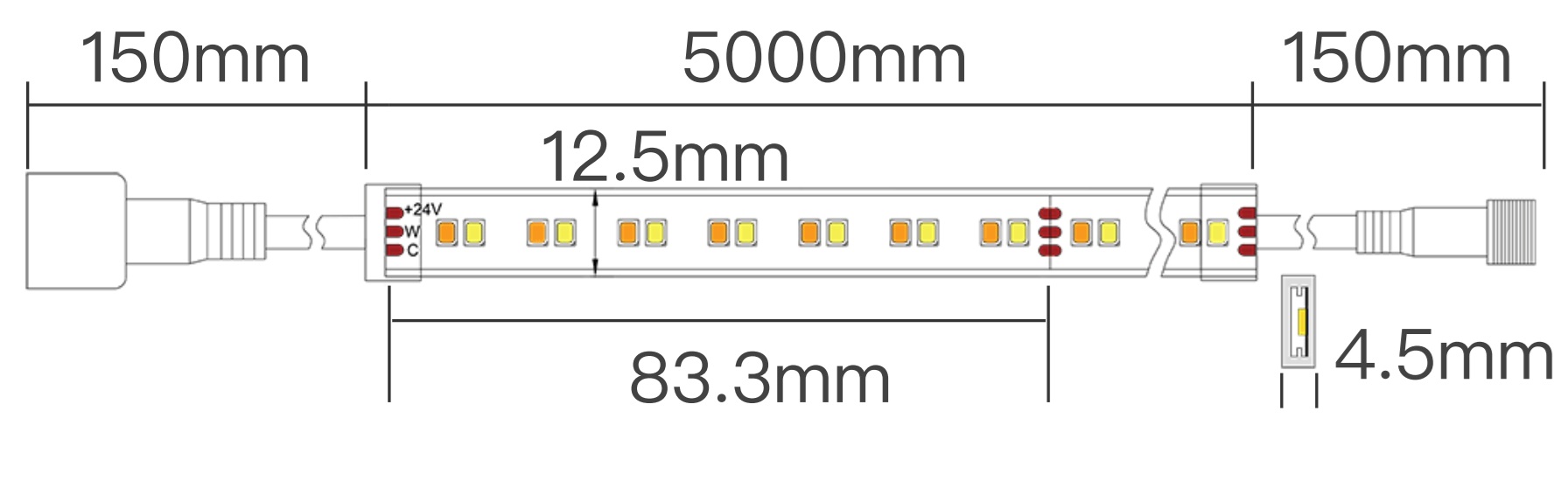

Dimensions

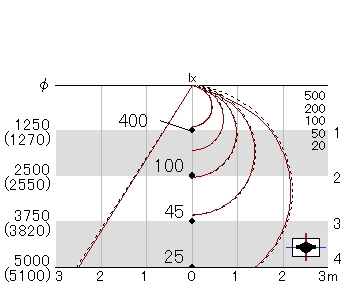

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Phase/0-10V/Dali/Smart LEDZ wire-less dimming
Operating
Voltage		 DC24V
Power
Consumption		 16.0W

Option Accessories


Option1

Power Feed Connector (Flex Tune)
  DFT-PFC

End cap
  DF-EC

In-line connector (Flex Tune)
  DFT-ILC

Option2

Silicone Holder
  DF-SH

Mounting rail w/acrylic cover
  DF-MRA

Mounting rail 45deg card-slot type
  DF-CST45

Please contact our sales office for ies file with option accessories
Make your own Spec sheet
