Tunable GENERAL Downlight Fixed
Download
- PDFSpec sheet
- JPGImage
- JPGDimension
- JPGBeam
angle data - JPG1/2
illuminance
angle data - PDFInstallation
manual - iesies
- BIMrfa
Add to
My Favorites
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | 9000TYPE |
|---|---|
| Cutout | Φ200 |
| Glare Cut Off Angle | 30° |
| Weight | 1.6 kg |
| Frame | Die-cast aluminum (matt white) |
| Cone | Aluminum (polished matt finish) |
| Driver | Remote (sold separately) |
| Beam Angle | 74° |
| Color Temperature | 6500K-2700K |
| Color Rendering | 85≦CRI |
| Rated Lumen Output | 10401 lm |

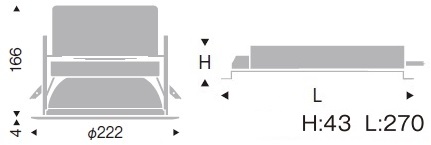

Dimensions

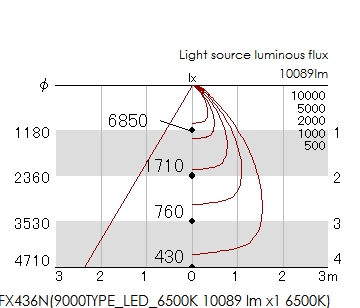

Light Distribution
