ERD7584W_FX436N

Tunable GENERAL Downlight Fixed

Download

Fixture Specifications

TYPE 9000TYPE
Cutout Φ200
Glare Cut Off Angle 20°
Weight 1.5 kg
Frame Die-cast aluminum (matt white)
Cone Aluminum (matt white)
Driver Remote (sold separately)

Beam Angle 91°
Color Temperature 6500K-2700K
Color Rendering 85≦CRI
Rated Lumen Output 10634 lm

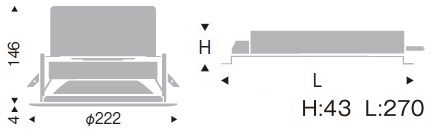

Dimensions

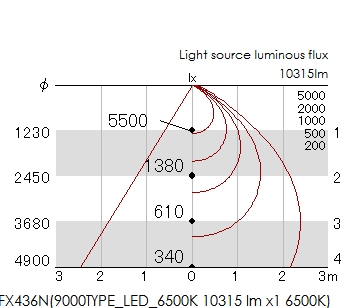

Light Distribution


Driver Specification

Model Number FX436N
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 102.4W
Dimension L:270 W:92 H:43
Weight 1.0 kg

Option Accessories


Please contact our sales office about SmartLEDZ system
Make your own Spec sheet
