ERD7603W_FX432N

Tunable GLARE-LESS Downlight Fixed

Download

Fixture Specifications

TYPE 900TYPE
Cutout Φ100
Glare Cut Off Angle 35°
Weight 0.4 kg
Frame Die-cast aluminum (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)

Beam Angle 58°
Color Temperature 6500K-2700K
Color Rendering 85≦CRI
Rated Lumen Output 757 lm

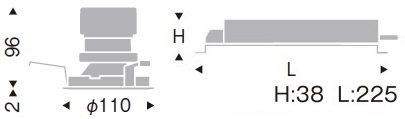

Dimensions

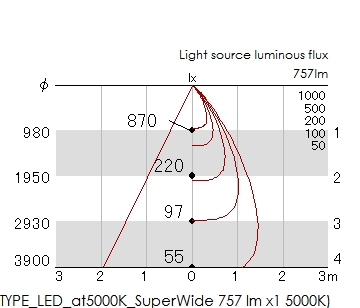

Light Distribution


Driver Specification

Model Number FX432N
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 10.1W
Dimension L:225 W:53 H:38
Weight 0.4 kg

Option Accessories


Please contact our sales office about SmartLEDZ system
Make your own Spec sheet
