ERD8475W_FX432N

Tunable GENERAL Downlight Adjustable

Download

Fixture Specifications

TYPE 1400TYPE
Cutout Φ75
Glare Cut Off Angle 30°
Weight 0.3 kg
Frame Die-cast aluminum (matt white)
Cone Aluminum (matt white)
Driver Remote (sold separately)
Rotation Range 360°
Tilt Angle 35°

Beam Angle 59°
Color Temperature 6500K-2700K
Color Rendering 85≦CRI
Rated Lumen Output 1130 lm

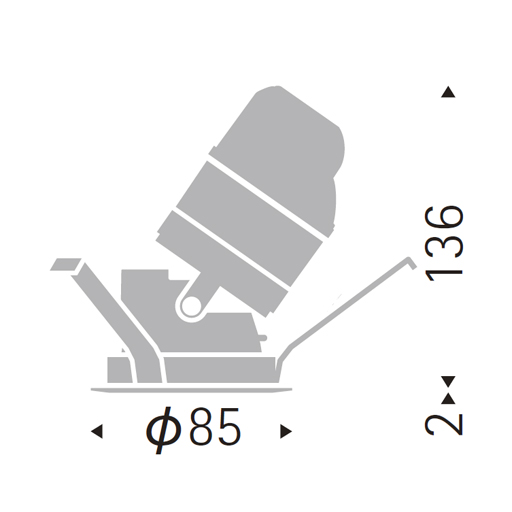

Dimensions

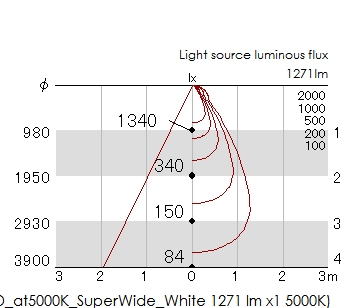

Light Distribution


Driver Specification

Model Number FX432N
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 15.1W
Dimension L:225 W:53 H:38
Weight 0.4 kg

Option Accessories


Please contact our sales office about SmartLEDZ system
Make your own Spec sheet
