ERK9708S_FAD621LA

LINEAR32 Surface mount LED unit Discontinued

Download

Fixture Specifications

TYPE L:1200
Weight 1.1 kg
Body Aluminum (alumite finish)
LED unit Sold separately
Required Option RK581N/RK566N:Power supply cable
(sold separately)

Beam Angle 139 x 110°
Rated Lumen Output 2591 lm

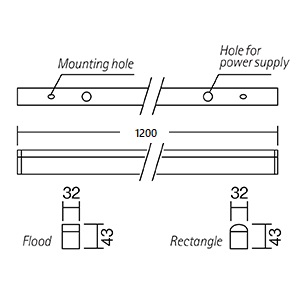

Dimensions

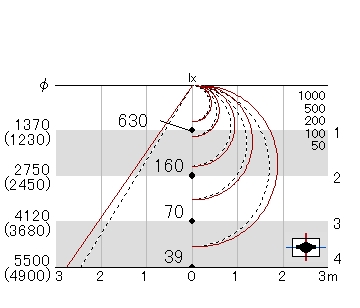

Light Distribution


LED unit Specification

Model Number FAD621LA
Dimming Non-dimmable/Smart LEDZ wire-less dimming
Operating
Voltage		 AC100-242V
Power
Consumption		 20.7W
Color Temperature 3000K
Color Rendering 82≦CRI
Remarks Max Connected Units 42pcs (200V/Non-dim)

Option Accessories


Option1

Power supply cable L:1000
  RK581N

Power supply cable L:200
  RK566N

Option2

Extension cable L:400
  RK560N

Extension cable L:200
  RK559N

Option3

Movable bracket
  RB485S

Please contact our sales office for ies file with option accessories
Make your own Spec sheet
