ERK9708S_SAD404X

Synca Linear32 Surface mount LED unit Discontinued

Download

Fixture Specifications

TYPE L:1200 type
Weight 1.1 kg
Body Aluminum (alumite finish)
LED unit Sold separately
Required Option RK581N/RK566N:Power supply cable
(sold separately)

Beam Angle 136 x 105°
Rated Lumen Output 3000 lm

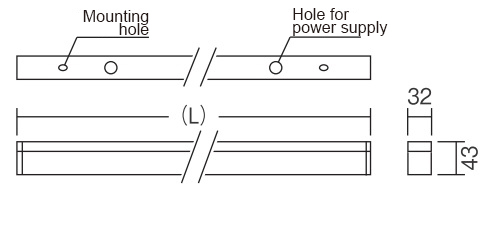

Dimensions

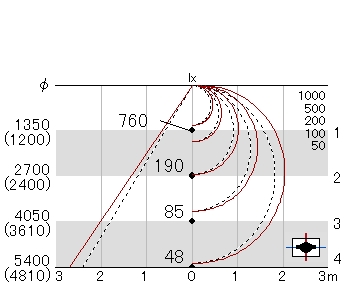

Light Distribution


LED unit Specification

Model Number SAD404X
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 23.1W
Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Remarks Built-in wireless module
Max Connected Units 24pcs (200V)

Option Accessories


Option1

Power supply cable L:1000
  RK581N

Power supply cable L:200
  RK566N

Option2

Extension cable L:400
  RK560N

Extension cable L:200
  RK559N

Option3

Movable bracket
  RB485S

Please contact our sales office for ies file with option accessories

*2023/7/7: Weight revised
Make your own Spec sheet
