ERX9412S

LINEAR17 Indirect light

Download

Fixture Specifications

TYPE L:1200
Weight 0.3 kg
Case body Aluminum (anodized finish)
Driver Remote (sold separately)
Please contact our sales office about suitable driver.
Required Option RB539X:Connector cable (sold separately)
Remarks Mounting brackets included

Beam Angle 31 x 76°
Color Temperature 3000K
Color Rendering 82≦CRI
Lightsource Lumen Output 1564 lm
Rated Lumen Output 1550 lm


Dimensions

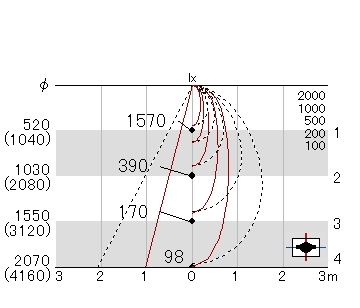

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Non-dimmable
Operating
Voltage		 DC24V
Power
Consumption		 27.2W

Option Accessories


Option1

Connector cable L:200
  RB539X

Option2

Extension cable L:1000
  RB540X

Extension cable L:3000
  RB541X

Option3

Surface mount bracket(vertical)
  RB859N

Movable bracket
  RB467N

Please contact our sales office for ies file with option accessories
