GERD5418WC-T_GRX468N-T

GLARE-LESS Downlight Wallwasher Mirror

Download

Fixture Specifications

TYPE 1400TYPE
Cutout Φ100
Glare Cut Off Angle 40°
Weight 0.6 kg
Frame Aluminum (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
IP Rating IP44

Color Temperature 3000K
Color Rendering 83≦CRI
Lightsource Lumen Output 1475 lm
Rated Lumen Output 1475 lm

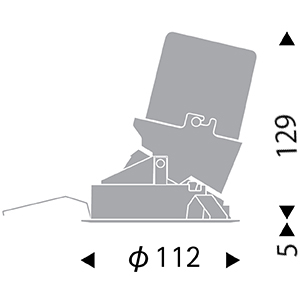

Dimensions

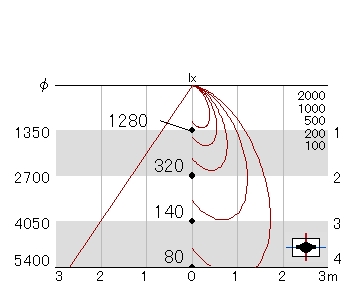

Light Distribution


Driver Specification

Model Number GRX468N-T
Dimming Non-dimmable
Operating
Voltage		 AC220-240V
Power
Consumption		 19.8W
Dimension L:100 W:38 H:25
Weight 0.1 kg

Option Accessories
