GERD8164W-T_GRX467N-T

synclite Downlight GYRO 3units

Download

Fixture Specifications

TYPE 1400TYPE
Unit 3
Cutout 115 x 305
Weight 1.4 kg
Frame Steel plate (matt white)
Cone/body Aluminum (matt black)
Driver Remote (sold separately)x3
Tilt Angle 30°

Beam Angle 32°
Color Temperature 3000K
Color Rendering 85≦CRI
Lightsource Lumen Output 1684 lm /Unit
Rated Lumen Output 1684 lm /Unit

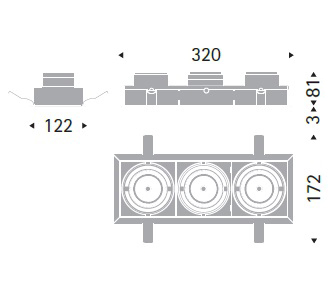

Dimensions

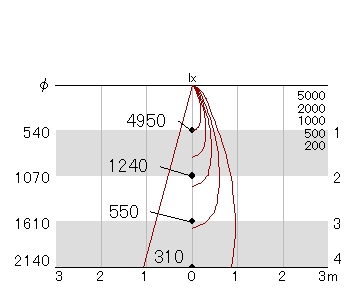

Light Distribution


Driver Specification

Model Number GRX467N-T
Dimming Non-dimmable
Operating
Voltage		 AC220-240V
Power
Consumption		 13.9W /Unit
Dimension L:100 W:38 H:25
Weight 0.1 kg /Unit
