GERD8170W-T_GRX468N-T

synclite Downlight GYRO 3units

Download

Fixture Specifications

TYPE 2000TYPE
Unit 3
Cutout 115 x 305
Weight 1.4 kg
Frame Steel plate (matt white)
Cone/body Aluminum (matt black)
Driver Remote (sold separately)x3
Tilt Angle 30°

Beam Angle 32°
Color Temperature 4000K
Color Rendering 83≦CRI
Lightsource Lumen Output 2338 lm /Unit
Rated Lumen Output 2338 lm /Unit

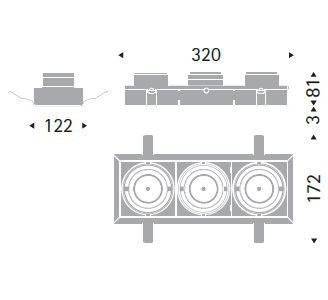

Dimensions

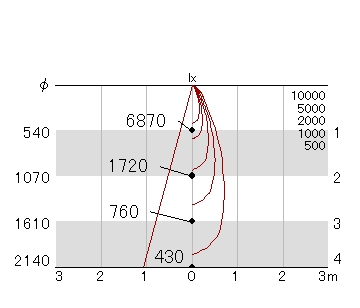

Light Distribution


Driver Specification

Model Number GRX468N-T
Dimming Non-dimmable
Operating
Voltage		 AC220-240V
Power
Consumption		 19.3W /Unit
Dimension L:100 W:38 H:25
Weight 0.1 kg /Unit

Option Accessories
Make your own Spec sheet
