GERD8240WB-T_GRX480N-T_GRB845W

GLARE-LESS Downlight Fixed Mirror, Trimless Frame Option

Download

Fixture Specifications

TYPE 800TYPE
Cutout Φ80
Glare Cut Off Angle 40°
Weight 0.2 kg
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
Remarks UGR<13

Beam Angle 29°
Color Temperature 3000K
Color Rendering 93≦CRI
Lightsource Lumen Output 1046 lm
Rated Lumen Output 656 lm

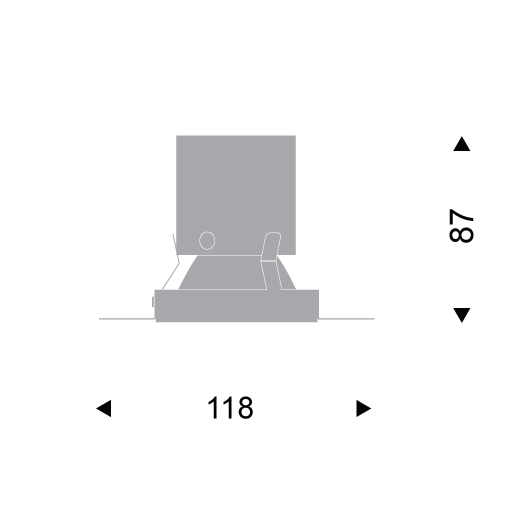

Dimensions

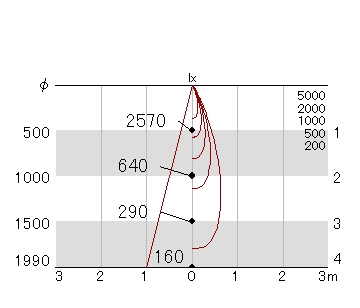

Light Distribution


Driver Specification

Model Number GRX480N-T
Dimming 0-10V dimming
Operating
Voltage		 AC220-240V
Power
Consumption		 14.2W
Dimension L:125 W:45 H:28
Weight 0.2 kg

Option Accessories


Option1

Spread lens
  GRB579C

Diffusion lens
  GRB575C

Honeycomb louver
  SRB583B

Please contact our sales office for ies file with option accessories

*Please, contact the sales office regarding fixture size and specification. *2024/5/10: Fixture size revised.
