GERD8889WA-T_GRX480N-T

GLARE-LESS Downlight Fixed mirror

Download

Fixture Specifications

TYPE 800TYPE
Cutout Φ75
Glare Cut Off Angle 40°
Weight 0.2 kg
Frame Aluminum (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
IP Rating IP44

Beam Angle 46°
Color Temperature 4000K
Color Rendering 83≦CRI
Lightsource Lumen Output 1435 lm
Rated Lumen Output 920 lm

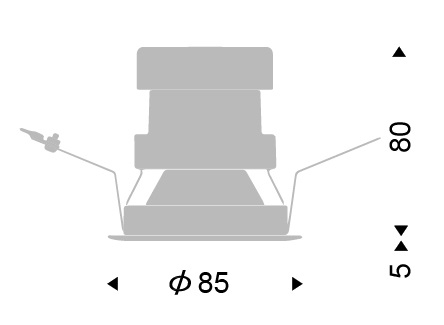

Dimensions

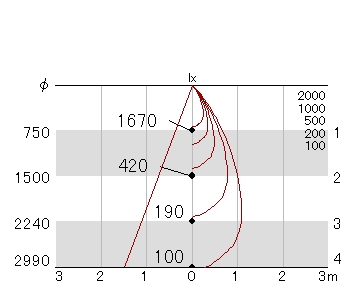

Light Distribution


Driver Specification

Model Number GRX480N-T
Dimming 0-10V dimming
Operating
Voltage		 AC220-240V
Power
Consumption		 14.2W
Dimension L:125 W:45 H:28
Weight 0.2 kg

Option Accessories


Option1

Spread lens
  GRB579C

Diffusion lens
  GRB575C

Honeycomb louver
  SRB583B

Please contact our sales office for ies file with option accessories
