GERD8894WA-T_GRX467N-T

GLARE-LESS Downlight Fixed mirror

Download

Fixture Specifications

TYPE 800TYPE
Cutout Φ75
Glare Cut Off Angle 40°
Weight 0.2 kg
Frame Aluminum (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
IP Rating IP44

Beam Angle 29°
Color Temperature 3000K
Color Rendering 83≦CRI
Lightsource Lumen Output 1196 lm
Rated Lumen Output 751 lm

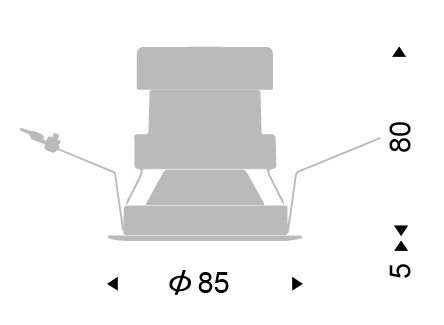

Dimensions

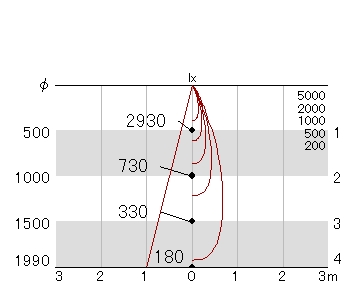

Light Distribution


Driver Specification

Model Number GRX467N-T
Dimming Non-dimmable
Operating
Voltage		 AC220-240V
Power
Consumption		 14.2W
Dimension L:100 W:38 H:25
Weight 0.1 kg

Option Accessories


Option1

Spread lens
  GRB579C

Diffusion lens
  GRB575C

Honeycomb louver
  SRB583B

Please contact our sales office for ies file with option accessories
Make your own Spec sheet
