GERD8917BA-T_GRX506N-T_GRB841W

MINI50 GLARE-LESS Downlight Adjustable Mirror, Square Frame Option

Download

Fixture Specifications

TYPE 300TYPE
Unit 2
Cutout 55 x 110
Glare Cut Off Angle 45°
Weight 0.4 kg
Square frame Steel SPCC (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately) x 2
Remarks *Driver: Also for non-dimming application
Rotation Range 355°
Tilt Angle 30°

Beam Angle 22°
Color Temperature 3000K
Color Rendering 93≦CRI
Lightsource Lumen Output 693 lm /Unit
Rated Lumen Output 343 lm /Unit

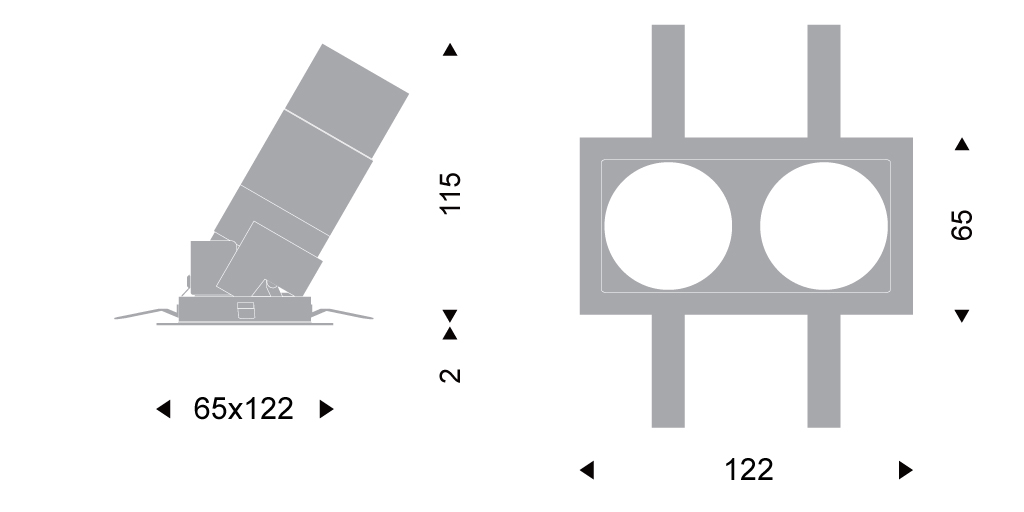

Dimensions

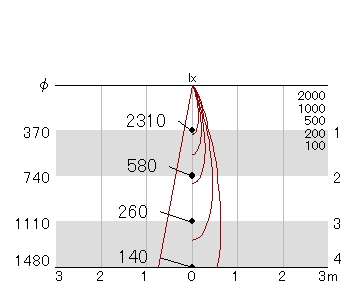

Light Distribution


Driver Specification

Model Number GRX506N-T
Dimming 0-10V dimming
Operating
Voltage		 AC220-240V
Power
Consumption		 6.2W /Unit
Dimension L:125 W:45 H:28
Weight 0.2 kg /Unit

Option Accessories


Option1

Spread lens
  GRB837C

Diffusion lens
  GRB836C

Honeycomb louver
  GRB838B

Please contact our sales office for ies file with option accessories

Different angles can be mixed into one frame *Please, contact the sales office regarding fixture size and specification. *2023/10/10: Fixture size, frame material revised. *2024/5/10: Fixture size revised.
