MINI50 GLARE-LESS Downlight Adjustable Mirror
Download
- PDFSpec sheet
- JPGImage
- JPGDimension
- JPGBeam
angle data - JPG1/2
illuminance
angle data - PDFInstallation
manual - iesies
- BIMrfa
Add to
My Favorites
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | 500TYPE |
|---|---|
| Cutout | Φ50 |
| Glare Cut Off Angle | 35° |
| Weight | 0.2 kg |
| Frame | Aluminum (matt white) |
| Cone | Aluminum (mirror finish) |
| Driver | Remote (sold separately) Please contact our sales office about suitable driver. |
| Remarks | 350mA |
| Rotation Range | 355° |
| Tilt Angle | 30° |
| Beam Angle | 30° |
| Color Temperature | 6500K-2700K |
| Color Rendering | 85≦CRI |
| Lightsource Lumen Output | 1140 lm |
| Rated Lumen Output | 517 lm |

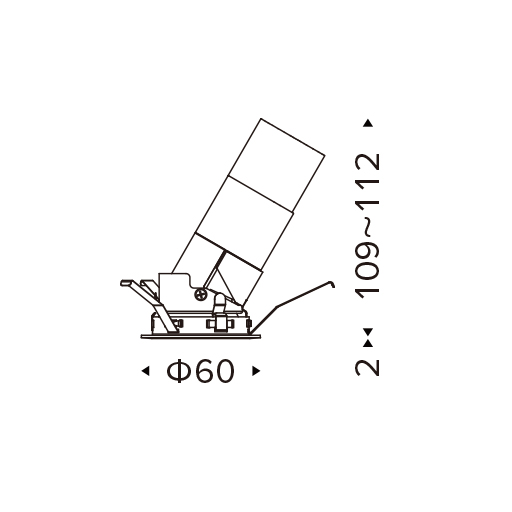

Dimensions

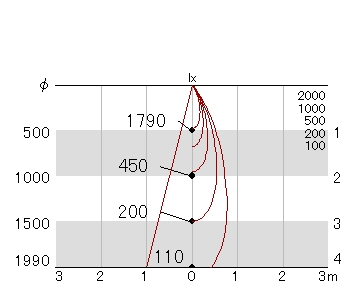

Light Distribution
