GERD9930W-T_GRX521N-T

MINI35 IP54 GLARE-LESS Downlight Fixed Mirror

Fixture Specifications

TYPE 250TYPE
Cutout Φ35
Glare Cut Off Angle 40°
Weight 0.1 kg
Frame Aluminum (matt white)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
Remarks *We can also offer dimming driver
depending on requirements
IP Rating IP54

Beam Angle 29°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 408 lm
Rated Lumen Output 252 lm

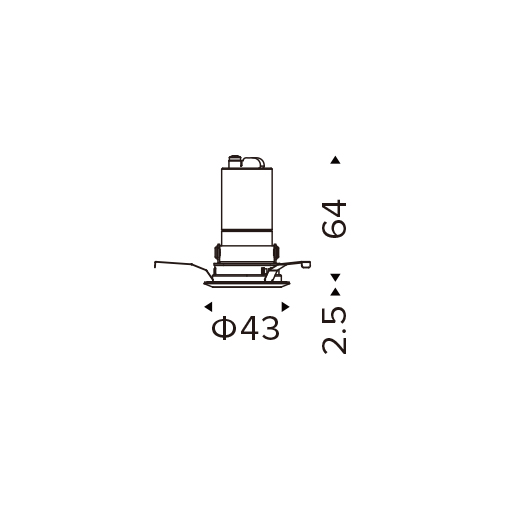

Dimensions

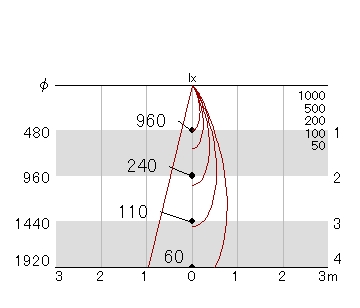

Light Distribution


Driver Specification

Model Number GRX521N-T
Dimming Non-dimmable
Operating
Voltage
AC220-240V
Power
Consumption
5.6W
Dimension L:100 W:24 H:18
Weight 0.1 kg

Option Accessories


For other Remote Driver combinations, please refer to P130 (sync5 DATA BOOK)
