GERD9954W-T_GRX549N-T

MINI35 IP54 GLARE-LESS Downlight Fixed Shallow

Fixture Specifications

TYPE 150TYPE
Cutout Φ35
Glare Cut Off Angle 25°
Weight 0.1 kg
Frame Aluminum (matt white)
Body Aluminum (matt black)
Driver Remote (sold separately)
Remarks *We can also offer dimming driver
depending on requirements
IP Rating IP54

Beam Angle 68°
Color Temperature 2400K
Color Rendering 93≦CRI
Lightsource Lumen Output 231 lm
Rated Lumen Output 86 lm

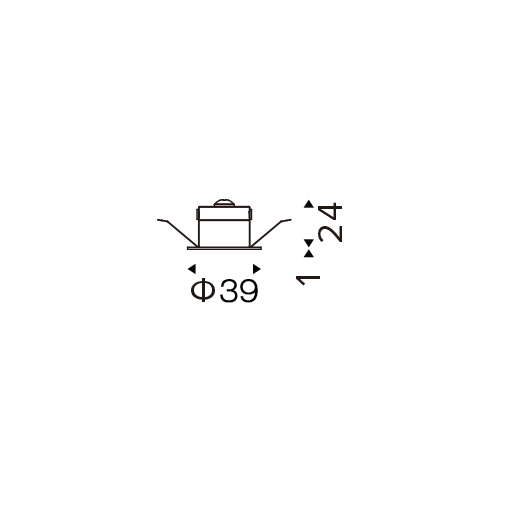

Dimensions

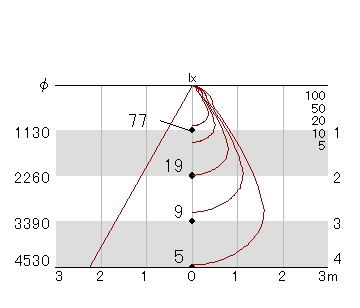

Light Distribution


Driver Specification

Model Number GRX549N-T
Dimming Non-dimmable
Operating
Voltage
AC220-240V
Power
Consumption
3.1W
Dimension L:53 W:27 H:21
Weight 0.1 kg

Option Accessories


For other Remote Driver combinations, please refer to P131 (sync5 DATA BOOK)
