MINI50 GLARE-LESS Ceiling Downlight (integrated Driver)
Download
- PDFSpec sheet
- JPGImage
- JPGDimension
- JPGBeam
angle data - JPG1/2
illuminance
angle data - PDFInstallation
manual - iesies
- BIMrfa
Add to
My Favorites
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | 700TYPE |
|---|---|
| Cutout | Φ64 |
| Glare Cut Off Angle | 35° |
| Weight | 0.6 kg |
| Body | Aluminum (matt white) |
| Cone | Aluminum (mirror finish) |
| Driver | Integrated (Non-dimmable) |
| IP Rating | IP54 |
| Beam Angle | 31° |
| Color Temperature | 3000K |
| Color Rendering | 83≦CRI |
| Lightsource Lumen Output | 1547 lm |
| Rated Lumen Output | 798 lm |

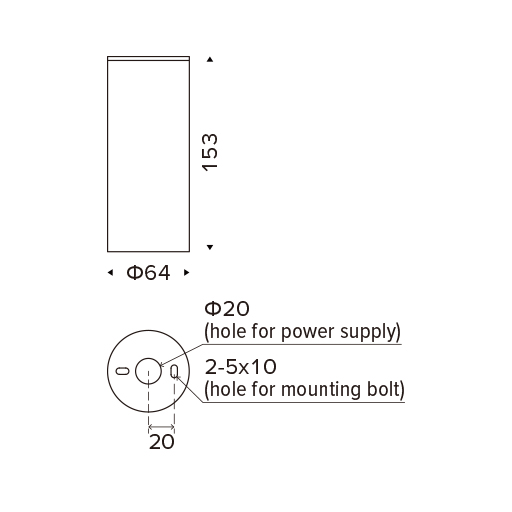

Dimensions

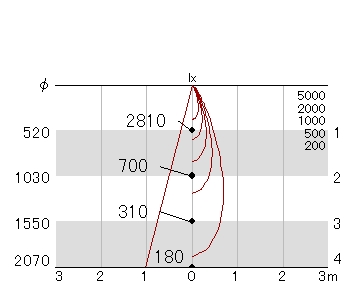

Light Distribution
