Fixture Specifications
| TYPE | D140 |
|---|---|
| Weight | 2.3 kg |
| Body | Die-cast aluminum (dark gray leather finish) |
| Driver | Integrated (Non-dimmable) |
| Remarks | Mountable in any orientation |
| IP Rating | IP67 |
| Rotation Range | 360° |
| Tilt Angle | 140° |
| Beam Angle | 19° |
| Color Temperature | 2700K |
| Color Rendering | 93≦CRI |
| Lightsource Lumen Output | 1196 lm |
| Rated Lumen Output | 1196 lm |

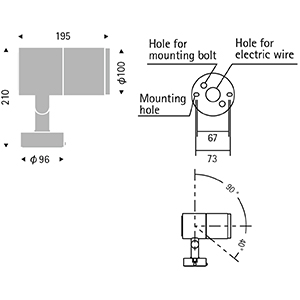

Dimensions

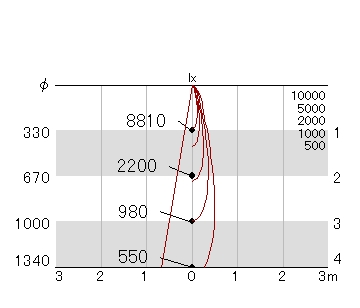

Light Distribution
