DUAL Outdoor Spotlight
Download
- PDFSpec sheet
- JPGImage
- JPGDimension
- JPGBeam
angle data - JPG1/2
illuminance
angle data - PDFInstallation
manual - iesies
- BIMrfa
Add to
My Favorites
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | D200 |
|---|---|
| Weight | 2.3 kg |
| Body | Die-cast aluminum (dark gray leather finish) |
| Driver | Integrated (Non-dimmable) |
| Remarks | Mountable in any orientation |
| IP Rating | IP67 |
| Rotation Range | 360° |
| Tilt Angle | 140° |
| Beam Angle | 9° |
| Color Temperature | 4000K |
| Color Rendering | 85≦CRI |
| Lightsource Lumen Output | 1520 lm |
| Rated Lumen Output | 1520 lm |

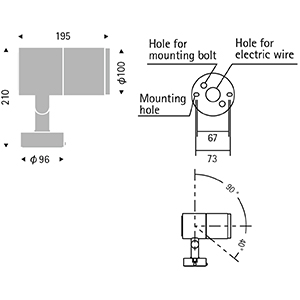

Dimensions

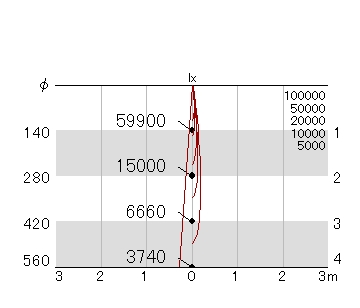

Light Distribution
