DUAL Outdoor Spotlight
Download
- PDFSpec sheet
- JPGImage
- JPGDimension
- JPGBeam
angle data - JPG1/2
illuminance
angle data - PDFInstallation
manual - iesies
- BIMrfa
Add to
My Favorites
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | D90 |
|---|---|
| Weight | 1.2 kg |
| Body | Die-cast aluminum (dark gray leather finish) |
| Driver | Integrated (Phase dimmable 30-100%) |
| Remarks | Mountable in any orientation |
| IP Rating | IP67 |
| Rotation Range | 360° |
| Tilt Angle | 140° |
| Beam Angle | 16° |
| Color Temperature | 3000K |
| Color Rendering | 85≦CRI |
| Lightsource Lumen Output | 756 lm |
| Rated Lumen Output | 756 lm |

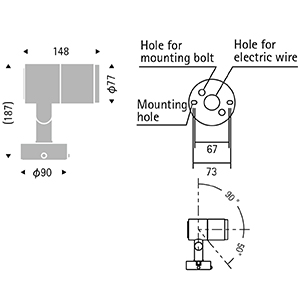

Dimensions

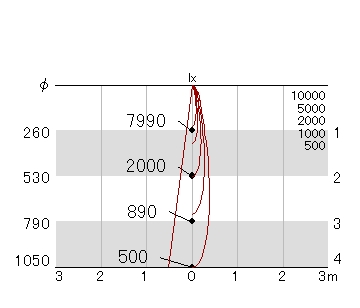

Light Distribution
