GERS7307H-T

MINI30 OUTDOOR Flange Spotlight

Download

Fixture Specifications

TYPE 250TYPE
Weight 0.2 kg
Body Aluminum (dark gray leather finish)
Driver Remote (sold separately)
Remarks *24V power supply needed.
*Parallel curcuit wiring, 24V CV Driver needed.
please contact our sales office.
2m cable attached.
IP Rating IP65
Rotation Range 355°
Tilt Angle 115°

Beam Angle 17°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 408 lm
Rated Lumen Output 115 lm


Dimensions

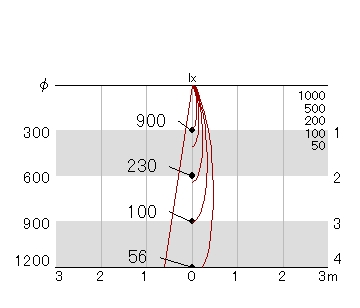

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture
Dimming Non-dimmable
Operating
Voltage		 DC24V
Power
Consumption		 4.4W

Option Accessories


Option1

Honeycomb louver
  GRB903B

Diffusion lens
  GRB904C

Option2

Cut hood
  GRB897H

Spread lens Holder
  GRB919H

Short Hood
  GRB948H

Option3

Spike
  GRB898N

Tree-belt
  GRB899N

Please contact our sales office for ies file with option accessories

*2024/9/9: Driver revised
Make your own Spec sheet
