GERS7355H-T

MINI30 OUTDOOR Stacking Spotlight (Parallel Circuit)

Download

Fixture Specifications

TYPE 250TYPE
Weight 0.3 kg
Body Aluminum (dark gray leather finish)
Driver Remote (sold separately)
Required Option GRB910H : Spike base (parallel circuit)
Remarks Parallel Circuit DCDC converter integrated.
*Required spike base GRB-910H
(sold separately)
*Extension pipes need extension cords.
*24V CV Driver needed,
please contact our sales office.
IP Rating IP65
Rotation Range 355°
Tilt Angle 90°

Beam Angle 17°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 409 lm
Rated Lumen Output 115 lm

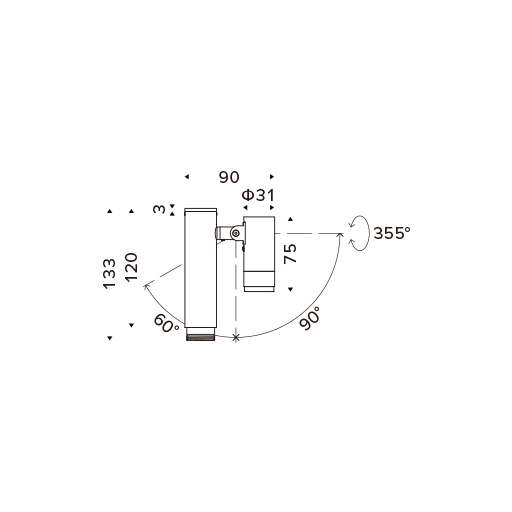

Dimensions

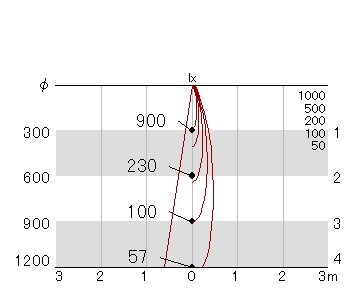

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Non-dimmable
Operating
Voltage		 DC24V
Power
Consumption		 4.4W

Option Accessories


Option1

Honeycomb louver
  GRB903B

Diffusion lens
  GRB904C

Option2

Spread lens Holder
  GRB919H

Option3

Spike Base (Parallel Circuit)
  GRB910H

Option4

φ30 Extension Pipe (L:400)
  GRB908H

φ30 Extension Pipe (L:200)
  GRB909H

Please contact our sales office for ies file with option accessories
