GERS7373H-T

MINI30 OUTDOOR Stacking Spotlight (Series Circuit)

Download

Fixture Specifications

TYPE 250TYPE
Weight 0.3 kg
Body Aluminum (dark gray leather finish)
Required Option GRB911H : Spike base with ballast (series circuit)
Remarks Series circuit W/O DCDC converter.
*Required spike base with ballast GRB-911H
(sold separately)
*Extension pipes need extension cords.
IP Rating IP65
Rotation Range 355°
Tilt Angle 90°

Beam Angle 30°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 408 lm
Rated Lumen Output 281 lm

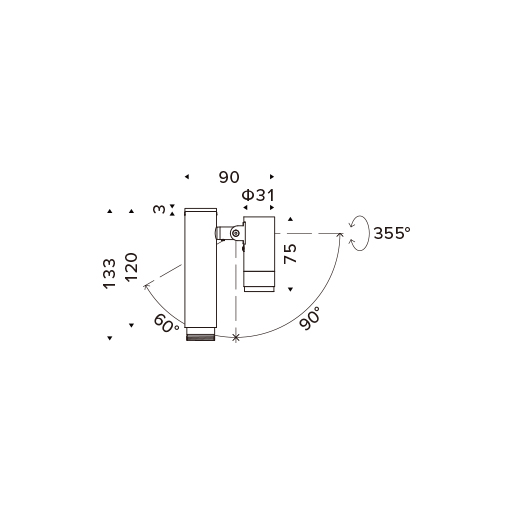

Dimensions

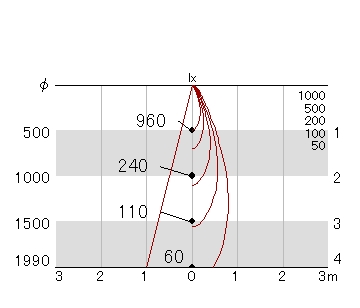

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Non-dimmable
Operating
Voltage		 AC220-240V
Power
Consumption		 4.4W

Option Accessories


Option1

Honeycomb louver
  GRB903B

Diffusion lens
  GRB904C

Option2

Spread lens Holder
  GRB919H

Option3

Spike Base with Ballast (Series Circuit)
  GRB911H

Option4

φ30 Extension Pipe (L:400)
  GRB908H

φ30 Extension Pipe (L:200)
  GRB909H

Extension Harness (L:400)
  GRB912N

Extension Harness (L:200)
  GRB913N

Please contact our sales office for ies file with option accessories
