GERS7390H-T

MINI30 OUTDOOR Slender Spike Spotlight

Download

Fixture Specifications

TYPE 250TYPE
Weight 0.6 kg
Body Aluminum (dark gray leather finish)
Driver Remote (sold separately)
Remarks *24V power supply needed.
*Parallel curcuit wiring, 24V CV Driver needed.
please contact our sales office.
2m cable attached.
IP Rating IP65
Tilt Angle 120°

Beam Angle 47°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 408 lm
Rated Lumen Output 278 lm

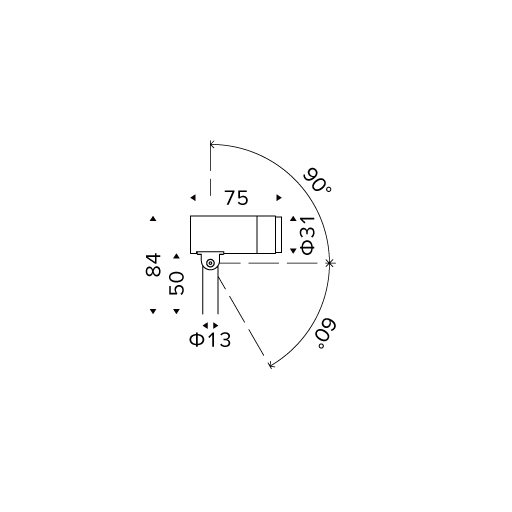

Dimensions

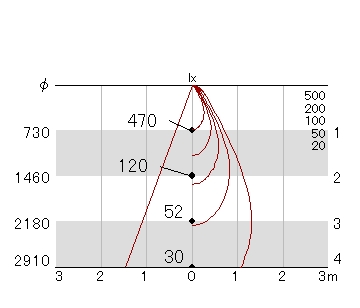

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Non-dimmable
Operating
Voltage		 DC24V
Power
Consumption		 4.4W

Option Accessories


Option1

Honeycomb louver
  GRB903B

Diffusion lens
  GRB904C

Option2

Cut hood
  GRB897H

Spread lens Holder
  GRB919H

Short Hood
  GRB948H

Option3

Slender Spike Base
  GRB916H

Slender Connection pipe(H350mm)
  GRB917H

Slender Extension pipe Spike Base
  GRB918H

Please contact our sales office for ies file with option accessories
