GERS7481H-T

MINI40 OUTDOOR Functional Bracket

Download

Fixture Specifications

TYPE 650TYPE
Weight 0.3 kg
Body Dark Gray
Driver Remote (sold separately)
Remarks *24V power supply needed.
*Parallel curcuit wiring, 24V CV Driver needed.
please contact our sales office.
2m cable attached.
IP Rating IP65
Rotation Range 60°
Tilt Angle 90°

Beam Angle 34°
Color Temperature 2700K
Color Rendering 93≦CRI
Lightsource Lumen Output 738 lm
Rated Lumen Output 588 lm

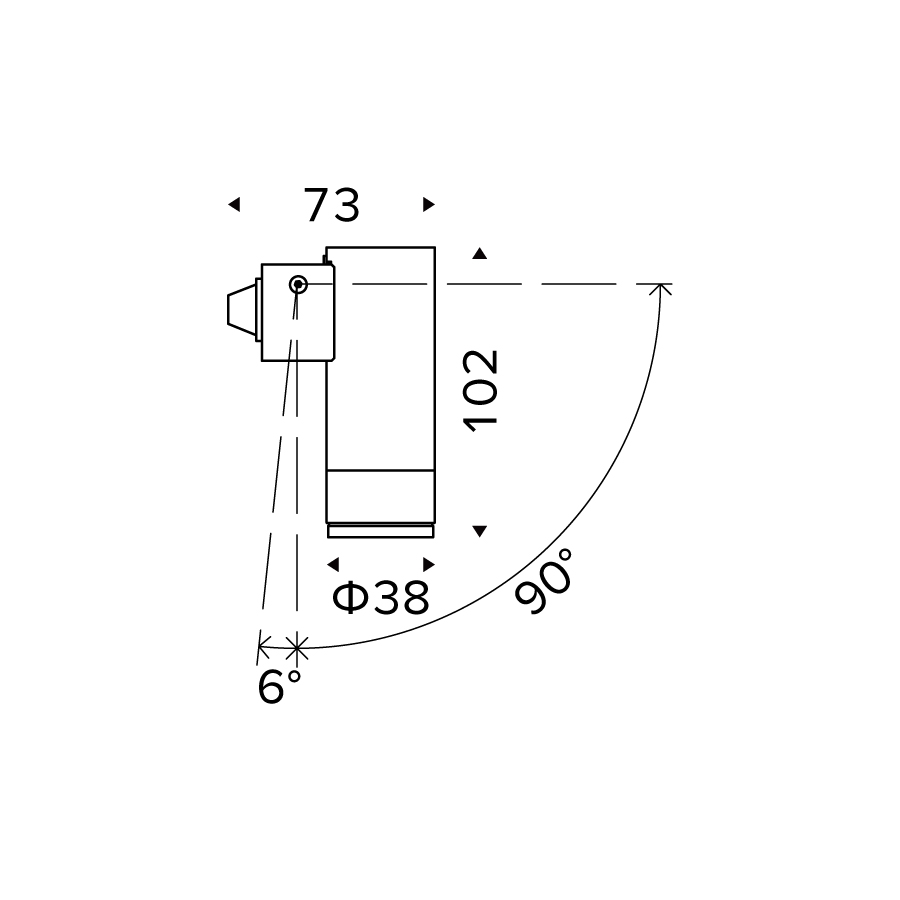

Dimensions

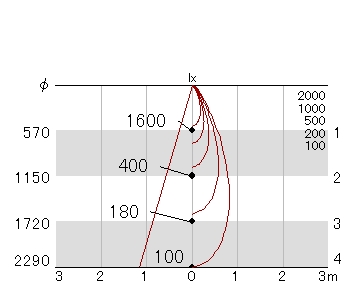

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming Non-dimmable
Operating
Voltage		 DC24V
Power
Consumption		 8.4W

Option Accessories


Option1

Honeycomb louver
  GRB838B

Option2

Cut hood
  GRB993H-T

Short hood
  GRB994H-T

Spread lens hood
  GRB995H-T

Please contact our sales office for ies file with option accessories
