ACCORD65 Downlight Adjustable Mirror
Download
){kind=link}
){kind=link}
){kind=link}
){kind=link}
Fixture Specifications
| TYPE | 1000TYPE |
|---|---|
| Cutout | Φ65 |
| Glare Cut Off Angle | 40° |
| Weight | 0.2 kg |
| Frame | Aluminum (matt white) |
| Cone | Aluminum (mirror finish) |
| Driver | Remote (sold separately) |
| Remarks | Tilt angle is 25 degrees when used with lenses and honeycomb louvers. |
| Rotation Range | 355° |
| Tilt Angle | 35° |
| Beam Angle | 33° |
| Color Temperature | 3000K |
| Color Rendering | 83≦CRI |
| Lightsource Lumen Output | 1344 lm |
| Rated Lumen Output | 889 lm |

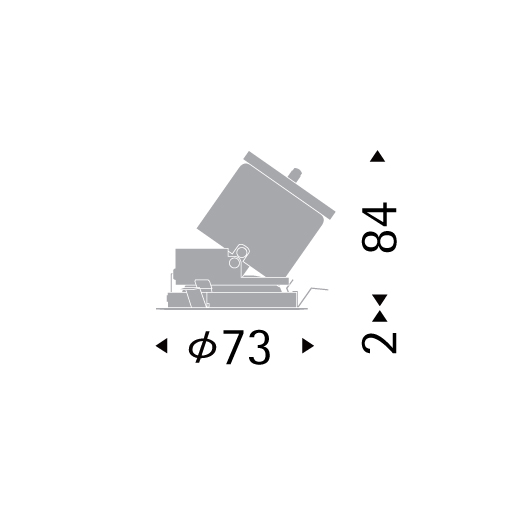

Dimensions
Light Distribution
