GTD0102B-WTWT

GLARE-LESS Downlight Fixed Mirror

Download

Fixture Specifications

TYPE 1400TYPE
Cutout Φ100
Glare Cut Off Angle 40°
Weight 0.4 kg
Frame Die-cast aluminum (matt black)
Cone Aluminum (mirror finish)
Driver Remote (sold separately)
Please contact our sales office about suitable driver.

Beam Angle 38°
Color Temperature 6500K-2700K
Color Rendering 85≦CRI
Lightsource Lumen Output 1264 lm
Rated Lumen Output 1264 lm

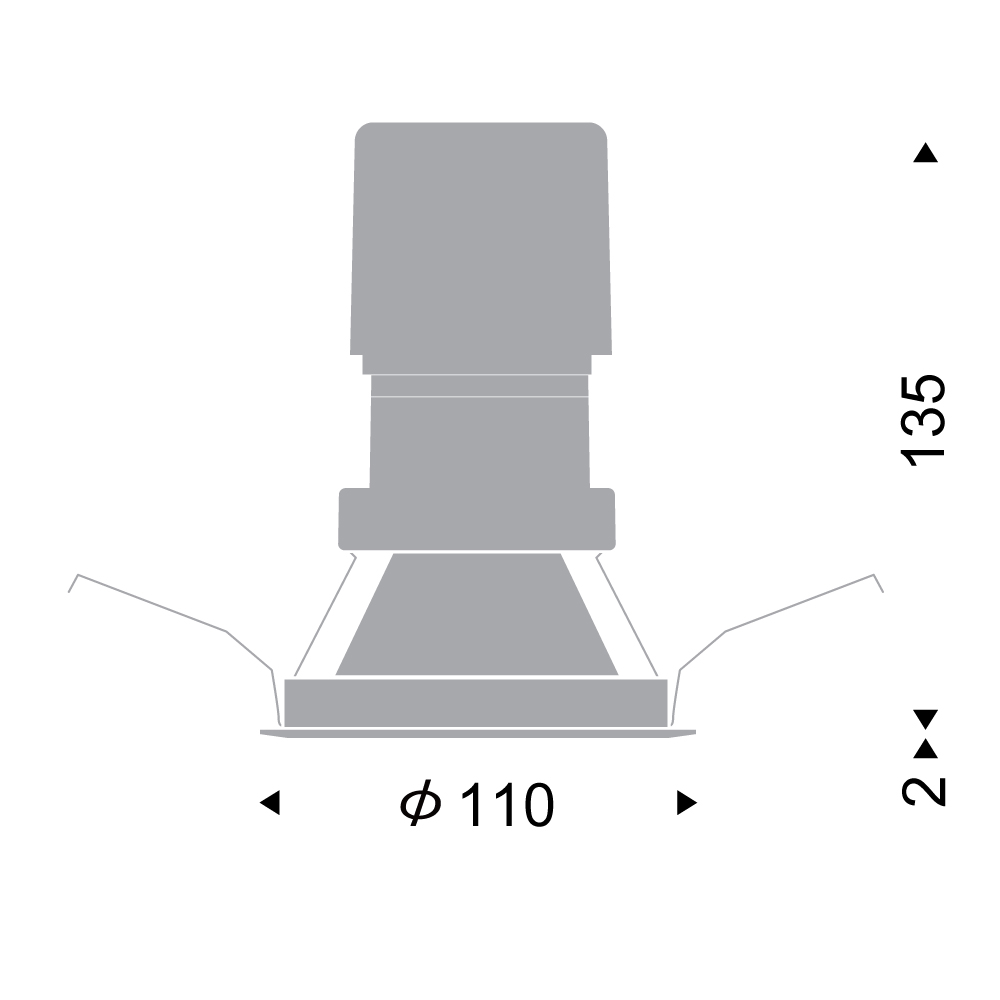

Dimensions

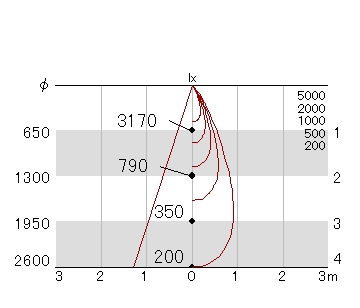

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming DALI dimming
Operating
Voltage		 AC220-240V
Power
Consumption		 18.5W

Option Accessories


Option1

Spread lens
  GRB578C

Diffusion lens
  GRB574C

Honeycomb louver
  SRB582B

Please contact our sales office for ies file with option accessories

*2023/7/7: Fixture size revised
