SXS3040S-L

Synca Linear Outdoor Linear spotlight

Download

Fixture Specifications

TYPE L:600
Weight 2.1 kg
Body Aluminum
(silver metallic finish, Heavy salt-resistant paint)
Driver Integrated
Required Option FX508W:Wired or DALI repeater (sold separately)
Remarks Wired dimming type
Mounting brackets, Cabtire
and leadwire cable are included
IP Rating IP65

Beam Angle 49 x 88°
Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 1218 lm
Rated Lumen Output 1218 lm

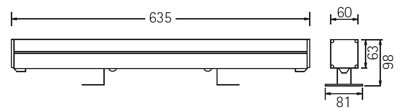

Dimensions

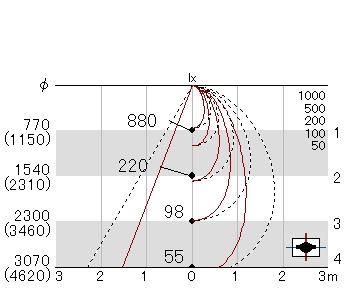

Light Distribution


Driver Specification

Model Number Driver Integrated
Manufacture
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 12.3W

Option Accessories


Option1

Glare-cut louver L:600
  RK614S

Shading plate L:600
  RK615S

Option2

Wall-mount movable arm
  RB366S

Surface-mount movable arm
  RB368S

Spike
  RB804N

Please contact our sales office for ies file with option accessories

*2023/7/7: Rated lumen output, weight, fixture size, beam angle revised. *Please contact our sales office for wired dimming type driver.
