SXX11200SY

Synca Strip Light Outdoor Flexible Strip Light

Download

Fixture Specifications

TYPE L:1200
Weight 0.1 kg
Body Silicon resin
Driver RX405ND/RX406ND:Remote (sold separately)
Required Option SX105N/SX105N-L:Synca driver (sold separately)
SX105N-L: Wired dimming type
*Required wired or DALI repeater (sold separately)
Remarks Fixture length: L=1220mm
IP Rating IP65

Beam Angle 114 x 116°
Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 767 lm
Rated Lumen Output 767 lm

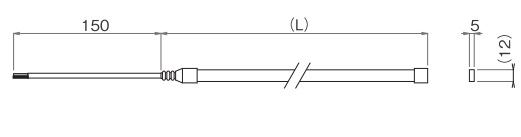

Dimensions

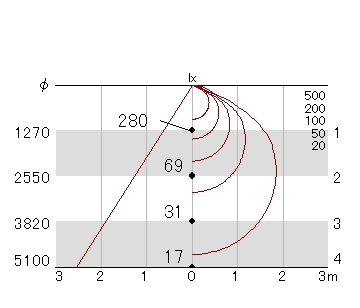

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming SmartLEDZ
Operating
Voltage		 DC24V
Power
Consumption		 11.5W

Option Accessories


Option1

Smart LEDZ Synca driver
  RX405ND

Smart LEDZ Synca driver
  RX406ND

Option2

Synca Signal unit
  SX105N

Synca Signal unit (wired dimming type)
  SX105N-L

Option3

Installation rail L:965
  RB723NA

Installation clip
  RB755N

Please contact our sales office for ies file with option accessories

*2023/7/7: Required option revised.
Make your own Spec sheet
