SXX9003SA

Synca Linear32 Outdoor Linear light

Download

Fixture Specifications

TYPE L:1200
Weight 1 kg
Body Acryllic (milky white/gray)
Driver Integrated
Required Option RB567N:Power supply cable (sold separately)
Remarks Fixture length: L=1211mm
Cannot be used in direct sunlight
Mounting brackets included
IP Rating IP54

Beam Angle 45 x 83°
Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 3120 lm
Rated Lumen Output 3120 lm

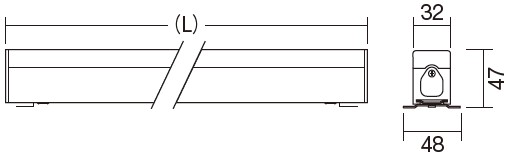

Dimensions

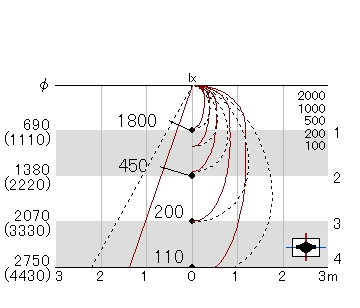

Light Distribution


Driver Specification

Model Number Driver Integrated
Manufacture
Dimming SmartLEDZ
Operating
Voltage		 AC100-242V
Power
Consumption		 23.1W

Option Accessories


Option1

Power supply cable L:1000
  RB567N

Option2

Extension cable L:200
  RB568N

Extension cable L:1000
  RB570N

Option3

Surface-mount movable arm
  RB550S

Wall-mount movable arm
  RB551S

Please contact our sales office for ies file with option accessories
