SXX9015MA

Synca Linear17 Outdoor Indirect light

Download

Fixture Specifications

TYPE L:1500
Weight 0.5 kg
Body polycarbonate
Driver RX405ND/RX406ND:Remote (sold separately)
Required Option RB745N:Connector cable (sold separately)
SX105N/SX105N-L:Synca driver (sold separately)
SX105N-L: Wired dimming type
*Required wired or DALI repeater (sold separately)
Remarks Fixture length: L=1414mm
Cannot be used in direct sunlight
Mounting brackets included
IP Rating IP65

Beam Angle 37 x 78°
Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 1072 lm
Rated Lumen Output 1072 lm

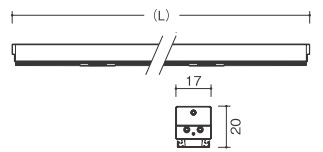

Dimensions

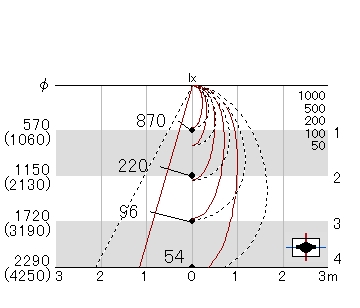

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming SmartLEDZ
Operating
Voltage		 DC24V
Power
Consumption		 21.5W

Option Accessories


Option1

Connector cable L:200
  RB745N

Synca Signal unit
  SX105N

Synca Signal unit (wired dimming type)
  SX105N-L

Option2

Glare cut louver L:150
  RK611B

Option3

Movable bracket
  RB707S

Spacer(for connecting)
  RB708S

Spacer(vertical)
  RB709S

Option4

Extension cable L:200
  RB746N

Extension cable L:500
  RB747N

Extension cable L:1000
  RB748N

Extension cable L:3000
  RB749N

Please contact our sales office for ies file with option accessories
