SXX9038B_RB798S

Synca Mu-Module Outdoor Indirect light

Download

Fixture Specifications

TYPE L:522
Weight 0.2 kg
Body Die-cast aluminum (matt black)
Driver RX405ND/RX406ND:Remote (sold separately)
Required Option RB745N:Connector cable (sold separately)
SX105N/SX105N-L:Synca driver (sold separately)
SX105N-L: Wired dimming type
*Required wired or DALI repeater (sold separately)
Remarks Fixture length: L=522mm
Single lamp type
IP Rating IP65

Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 453 lm
Rated Lumen Output 436 lm


Dimensions

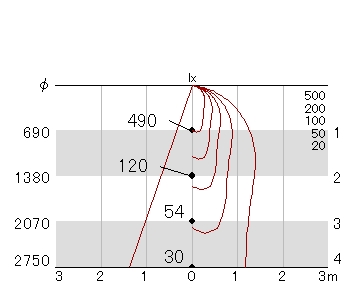

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming SmartLEDZ
Operating
Voltage		 DC24V
Power
Consumption		 10.1W

Option Accessories


Option1

Connector cable L:200
  RB745N

Option2

Extension cable L:200
  RB746N

Extension cable L:500
  RB747N

Extension cable L:1000
  RB748N

Extension cable L:3000
  RB749N

Option3

Spread lens
  RB805C

Please contact our sales office for ies file with option accessories

*2023/7/7: Power comsumption, required option revised.
Make your own Spec sheet
