SXX9040B_RB799S

Synca Mu-Module Outdoor Indirect light

Download

Fixture Specifications

TYPE L:485
Weight 0.1 kg
Body Die-cast aluminum (matt black)
Driver RX405ND/RX406ND:Remote (sold separately)
Required Option RB745N:Connector cable (sold separately)
SX105N/SX105N-L:Synca driver (sold separately)
SX105N-L: Wired dimming type
*Required wired or DALI repeater (sold separately)
Remarks Fixture length: L=485mm
Single lamp type
IP Rating IP65

Color Temperature 12000K-1800K
Color Rendering 92≦CRI
Lightsource Lumen Output 113 lm
Rated Lumen Output 107 lm


Dimensions

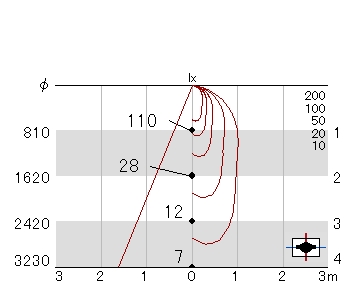

Light Distribution


Driver Specification

Model Number Driver Remote
Manufacture ENDO LIGHTING CORPORATION
Dimming SmartLEDZ
Operating
Voltage		 DC24V
Power
Consumption		 3.8W

Option Accessories


Option1

Connector cable L:200
  RB745N

Option2

Extension cable L:200
  RB746N

Extension cable L:500
  RB747N

Extension cable L:1000
  RB748N

Extension cable L:3000
  RB749N

Option3

Spread lens
  RB806C

Please contact our sales office for ies file with option accessories

*2023/7/7: Rated lumen output, power comsumption, required option revised.
